Color Coated Steel
KLAHAN LIMITED supplies pre-painted metal sheets with adequate zinc content and high quality paint. The strength, formability and flexibility of the metal are combined with high resistance to the external environment and ensure the preservation of its functionality for many years. The complete range of products that KLAHAN LIMITED presents allows the customer to choose from the whole variety the necessary product in accordance with his needs. A huge selection of color palettes, from standard to hundreds of shades, can be offered to the customer (Ral color charts, www.ralcolor.com). Painting is carried out in strict accordance with international standards, including EN 10169.
Pre-painted galvanized steel

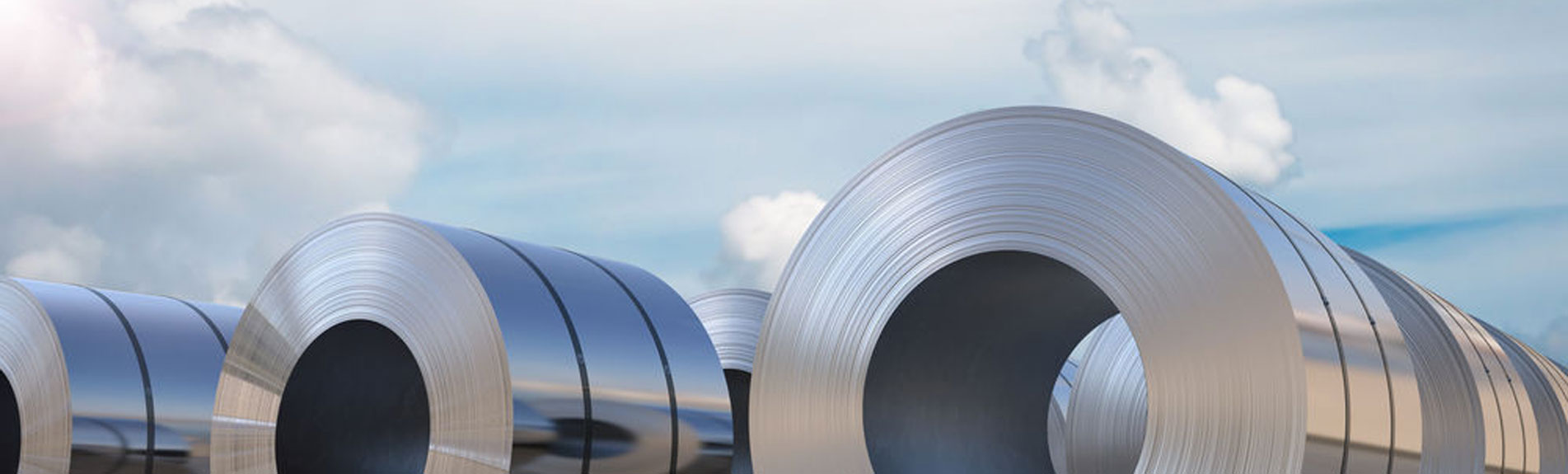

The basis of KLAHAN LIMITED products is zinc-coated steel coils intended for polymer coatings. Rolled steel is produced with one-sided or two-sided paint coating. The following types of coatings are possible:
- polyester or polyester - the coating withstands high air temperatures, has good corrosion resistance, high color fastness and plasticity. Heat resistance of the order of +120 0C, resistant to atmospheric influences. The coating thickness is 25 -30 microns, which leads to low resistance to mechanical stress;
- polyurethane - the coating is highly resistant to corrosion, mechanical damage, ultraviolet radiation, and significant daily temperature changes;
- polyvinyl chloride, or plastisol - a coating with a large thickness, resistance to mechanical damage. Its disadvantage is low temperature resistance and low UV resistance;
- epoxy and other types of paint and varnish coatings
Polyester is one of the most common polymers in the market for polymer coatings for galvanized steel sheet. Polyester coating can be glossy and matte (modified Teflon). Using polyester to coat galvanized steel sheet is a smart and cost effective choice.
Pre-painted galvanized steel sheet has a multi-layer structure: steel sheet, zinc layer, passivation layer, primer layer, and finally, protective paint on the bottom side of the sheet, and a color polymer layer on the front side. Polymer galvanizing is a material of a multilayer structure, which is selected carefully. Each layer has its own function.
Comparative characteristics of coating types
| Parameters | PVDF | Polyurethane | Plastisol | Matte polyester | Polyester |
|---|---|---|---|---|---|
| Coating thickness | 25-35 | 50 | 200 | 35 | 25 |
| Shine, Gardner 60° | 30 - 40 | - | 30 - 40 | - | 10 - 100 |
| Max. processing temperature, °С | 120 | 120 | 60 | 120 | 120 |
| Min. processing temperature, °С | -10 | -15 | -10 | -10 | -10 |
| Min. bend radius #1 | 1xt | 1xt | 2xt | 1xt | 2xt - 4xt |
| Min. bend radius #1 | 1xt | 1xt | 2xt | 1xt | 2xt - 4xt |
| Corrosion Protection #2 #4 | 4 | 5 | 5 | 4 | 3 |
| UV resistance #2 | 5 | 4 | 3 | 4 | 3 |
#1 - t = sheet thickness without polymer coating.
#2 - 5 = excellent, 4 = very good, 3 = good, 2 = fair.
#3- Ultraviolet radiation affects the color fastness of plastisols. Usually lighter colors are less affected.
#4 - Under normal climatic conditions. Specifications may change as coatings age.
The starting material for profiled products is thin-sheet cold-rolled rolled products with various protective coatings:
- hot dip galvanized
- Aluzinc hot dip coated
- hot dip galvanized with a polymer coating applied by a roller method in continuous units;
- with an aluminum-zinc protective layer and a polymer coating applied by a roller method in continuous units.
Regulatory documents for steel base
- N 10130-1991 Cold rolled low carbon steel flat products for cold forming. Specifications.
- EN 10142-2000 Hot-dipped galvanized steel for cold forming. Specifications.
- EN 10143-1993 Hot dip galvanized steel. Dimensional and shape tolerances.
- EN 10147-1995 Hot dip galvanized structural steel.
- EN 10292-03 Hot-coated high yield steel sheet and strip for cold forming.
Regulatory documents for pre-painted steel
- EN 10169-1 - 2003 “Continuous organic coated strip (coated coils)”.
- EN 10169-1-2003 Continuously applied organic coated steel flat products. Part 1: general information (definition, materials, tolerances, test methods).
- ENV 10169-2:1999 Continuous organic coated steel flat products
- JIS G3312: 2005 “Hot-dipped galvanized steel sheets and coils with color coating”.
- EN ISO 2409 Paints and varnishes. Grid notch test.
- EN ISO 6272 Paints and varnishes. Impact test.
- ISO 7253 Paints and varnishes. Determination of resistance to neutral salt fog.
Definitions
- Steel base: The base material is rolled steel sheet without a metal coating in the form of zinc or zinc-aluminum alloy.
- Protective coating - a metal or combined (metal + polymer) coating to protect the surface from external factors and give it a decorative look.
- Zinc coating - a coating obtained on the surface of rolled products by immersing it in a zinc melt.
- Zinc-aluminum coating is a coating obtained on the surface of rolled products by immersing it in a liquid alloy of zinc, aluminum, with additions of other metals.
- Galfan is a Zn alloy with 4.7-6.2% Al and misch metal additives containing Ln, Ce and other elements.
- Aluzinc is an alloy composed of 55% aluminum (Al), 43.4% zinc (Zn) and 1.6% silicon (Si).
- Tough-pass coating is a coating obtained as a result of cold rolling of steel with a metal coating in a skin-pass mill, characterized by a reduced surface roughness.
- Polymer coating - a film based on high-molecular compounds on the surface of a protective metal coating of rolled products, formed during hot drying of liquid paints and varnishes applied by the roller method (primers, finishing and protective enamels of a certain composition), which has a complex of protective, physical-mechanical, decorative and other special properties.
- Primer layer is the bottom layer in a multi-layer polymer coating system applied directly to the surface of the protective metal coating of rolled products, designed to improve the adhesion of the decorative coating to the surface of the rolled stock.
- Cut edge of rolled stock - an edge that has been cut off after cold rolling (for uncoated steel products) and after the process of applying a protective metal coating.
- The front side of rolled products with a protective coating is the side exposed to external factors.
- The reverse side of rolled products with a protective coating is the side opposite to the front side.
- Two-layer polymer coating - a coating consisting of a primer layer and a decorative polymer finishing layer.
- Single-layer primer coating - any type of coating on the reverse side of the rolled products, which is not subject to special requirements in terms of appearance, corrosion resistance, elasticity, etc.
- Single-sided polymer coated steel is steel with a two-layer polymer coating on the front side and a single-layer polymer coating on the reverse side of the rolled product, applied to protect the coating of the front side of the rolled product from mechanical damage during transportation and storage.
- Pre-painted steel products with a two-layer polymer coating on the front and back sides.
- The elasticity of a coating is the ability of a material to resist cracking and peeling in a T-bend test.
- Coating Thickness - The total thickness of the organic coating on either side.
- Metal roof tiles are steel cold-formed sheet profiles produced by roll forming machines that look like traditional ceramic tiles and are used in roof structures.
- Profiled steel decks are steel cold-formed sheet profiles with trapezoidal and wavy corrugations, produced on roll forming machines and used in various structural elements of buildings and other building structures for industrial and civil purposes.
- Non-aggressive atmosphere - the atmosphere of the countryside, suburbs, remote from industrial complexes, intra-city spaces.
- Slightly aggressive atmosphere - the atmosphere in the area of city streets and main roads, rural areas in a humid climate, coastal areas of the seas and large lakes.
- Moderately and strongly aggressive atmosphere - the atmosphere of the area adjacent to the enterprises of ferrous metallurgy, chemistry and petrochemistry, coal-fired thermal power plants, within urban highways with the most heavy traffic, proximity to areas subject to pollination from the air by chemical compounds, etc.
The characteristics of rolled products with polymer coatings are divided according to the type of steel base with a protective metal coating:
- cold-rolled hot-dip galvanized sheet metal
- Aluzinc-coated cold-rolled thin sheet
- cold-rolled sheet steel with galfan coating
| Coating type and material | Symbol | Typical coating thickness range, µm | Typical coating thickness µm3) |
|---|---|---|---|
Primers |
|||
| Polyester primer | - | 5-7 | - |
Protective enamels |
|||
| Epoxypolyester enamel | - | 5-15 | - |
Paint |
|||
| Epoxy | EP | 3-20 | Not set |
| Polyester | SP | 5-60 | 254 |
| Polyester matt | - | - | 35 |
| Polyurethane | PUR | 10-60 | 25 |
| Polyamide modified polyurethane | PUR-PA | 10-50 | 25 |
| Polyvinylidene fluoride | PVDF | 20-605 | 25 |
Plastisole |
|||
| Polyvinyl chloride plastisol | HPS | 40-2004 | 100-200 |
Notes:
- Coating material information is for reference only.
- The 15 µm thick coating is usually applied in a two-layer system:
primary (primer) layer plus top coat. Types of coatings and their composition may be different. - Nominal coating thicknesses apply unless otherwise specified at time of order.
- Applies to embossed and textured coating thicknesses.
- Consists of a primer (primer) coat and usually a top coat (intermediate coats are also available).
by type of coating:
- one-sided;
- double-sided;
- single layer;
- layered
according to the thickness of the base:
- from 0.25 to 1.2 - for a hot-dip galvanized base;
- from 0.4 to 1.2 - for a steel base with an aluminium-zinc coating.
by coating thickness according to the accuracy of rolling the steel base:
- normal - BT;
- increased - AT;
- special - S.
Requirements for coatings and appearance of profiled products.
- Protective coated steel used for the manufacture of profiled products must comply with the requirements of regulatory documents;
- The quality of the coating on the front side (in the case of double-sided coating - both sides) must correspond to the indicators in the table below.
| Polymer coating quality index Coating type |
|||||
|---|---|---|---|---|---|
| Polymer coating quality index | polyester | polyester matt | polyurethane | Polyvinyldenfluoride | plastisol |
| Coating thickness, mm | see table 1 | see table 1 | see table 1 | see table 1 | see table 1 |
| Color (color difference) | no more than 1 | no more than 1 | no more than 1 | no more than 1 | no more than 1 |
| Mirror gloss, units of gloss | 10-80 | - | 10-60 | 10-80 | 10-60 |
| Adhesion score | no more than 0 | no more than 0 | no more than 0 | no more than 0 | no more than 0 |
| Bending elasticity of the coating, "T" | no more than 1.5T | no more than 1T | no more than 0.5T | no more than 1.5T | no more than 0.5T |
| Adhesion strength at reverse impact, J | not less than 10J | not less than 15J | not less than 15J | not less than 10J | not less than 15J |
| Pencil Hardness | В-НВ-F-Н-2Н | F | Н-2Н | Н-2Н | V-NV-F-N |
| Neutral salt fog resistance, hour | 500 | 500 | 1000 | 1000 | 1000 |
| Methyl ethyl ketone (MEK) abrasion resistance, number of double passes | > 100 | not standardized | > 100 | > 100 | not standardized |
The protective zinc or aluzinc coating of profiled products must be continuous. Disruption of the continuity of the coating in the form of cracking is not allowed.
On the front side of profiled products with zinc and aluminum-zinc coating, the following are allowed:
- scratches and abrasions (dark dots and spots) that do not disturb the continuity of the coating
- light and matte spots
- Uneven coloration of the passivation film
- local roughness of the coating, grains, uneven crystallization of zinc and alu-zinc coatings
- matte and blurry crystallization pattern. The size and pattern of the crystallization pattern is not regulated and is determined by the rolled product manufacturer
- on the covered corrugation of the finished product, sagging, sagging and layering without cracking are allowed
The protective and decorative polymer coating should form an even, continuous, uniform and monophonic structure, with or without embossing.
On profiled products with a polymer coating, the following are allowed:
- areas of different shades and areas of different gloss
- areas and individual surface irregularities
- individual defects no larger than 3 mm, not penetrating to the metal base, or small groups of such defects located periodically or randomly
- separate areas with distortion of the embossing pattern (relief)
- on the covered corrugation of the finished product, shagreen, pockmarks, individual scratches are allowed
- coating defects (including imperfections) at a distance of no more than 3 mm from the rolled edge
On the surface of zinc, aluzinc and polymer coatings, abrasions, marks, traces of shaping rolls are allowed, which do not disturb the continuity of the coating.
On the covered corrugation of profiled sheets, prints, overpressures and jams are allowed, which are covered by the top sheets during installation.
Color shades and gloss of the coating are not regulated by the manufacturer of profiled products and are determined by the manufacturer of the rolled material.
Single-layer protective polymer coating on the reverse side of the rolled products must be continuous. The thickness, color and texture of the protective coating on the back side are determined by the manufacturer of the roll material.
The edges of profiled products must be free of burrs, cracks and notches.
Quality control of rolled products with a protective coating used for the manufacture of profiled products:
Zinc or aluminum protective coating must be continuous. Continuity irregularities in the form of cracks are not permitted.
On the face side of profiles with zinc and aluminum coating are allowed:
scratches and wear (dark spots and stains) not affecting the continuity of the coating
light and opaque stains
irregularity in the painting of a passivation film
local unevenness of the coating, grains, crystallization irregularities of the zinc and aluminum and zinc coating
opaque and diffuse crystallization pattern. The size and pattern of the crystallization pattern is not regulated and is defined by the laminate producer
overflows, concretions and stratifications
Protective decorative coating must form a homogeneous, continuous, uniform structure and of the same color, with or without stamping.
On profiled articles with polymeric coating are allowed:
- beaches with different skin tones and radiance
- beaches and isolated parts unevenly coated
- isolated defects not exceeding 3 mm, do not penetrate to the metallic base or small groups of such defects located in a chaotic or chaotic manner
- isolated parts with an alteration of the design (relief) of the stamping
- chagrins, grains, isolated scratches are allowed on a waffle of the manufactured article
- defect in the coating (including unpainted spaces) not exceeding a distance of 3 mm from the edge of the laminate
- On a surface of the zinc, aluminum and zinc coating and of the polymeric coating are allowed: wear, streaks, traces of the reliefs of rollers not altering the continuity of the coating.
On a profile cover embossing, indentations, indentations and knurling covered by the upper sheets during assembly are allowed.
Shades of color and sheen of the covering are not regulated by the profile producer and are defined by the factory-manufacturer of roll materials.
A protective single layer polymer coating on the back of the laminate must be continuous. The thickness, color and texture of the protective coating are defined by the roll material factory-manufacturer.
The edges of the profiles must be free of burrs, gaps and serrations.
RAL Color Chart
There are several color coding standards. The most popular of these is RAL, developed by the “German Institute for Quality Assurance and Certification RAL” in 1927. Within the framework of this standard, each shade of any color has its own digital index - this is the RAL standard. Many manufacturers of polymer coatings for galvanized steel adhere to standard colors from the RAL catalog.
